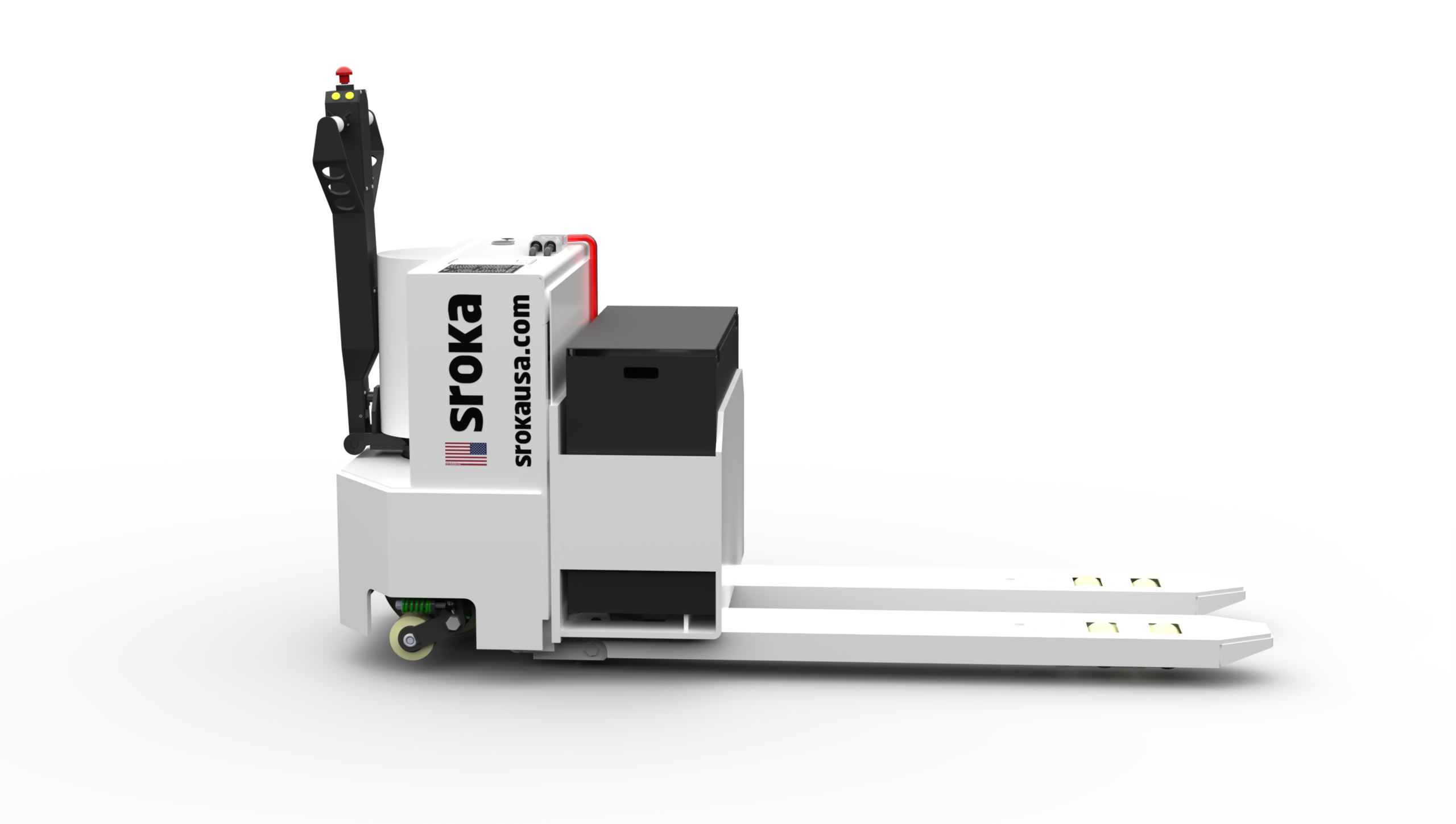

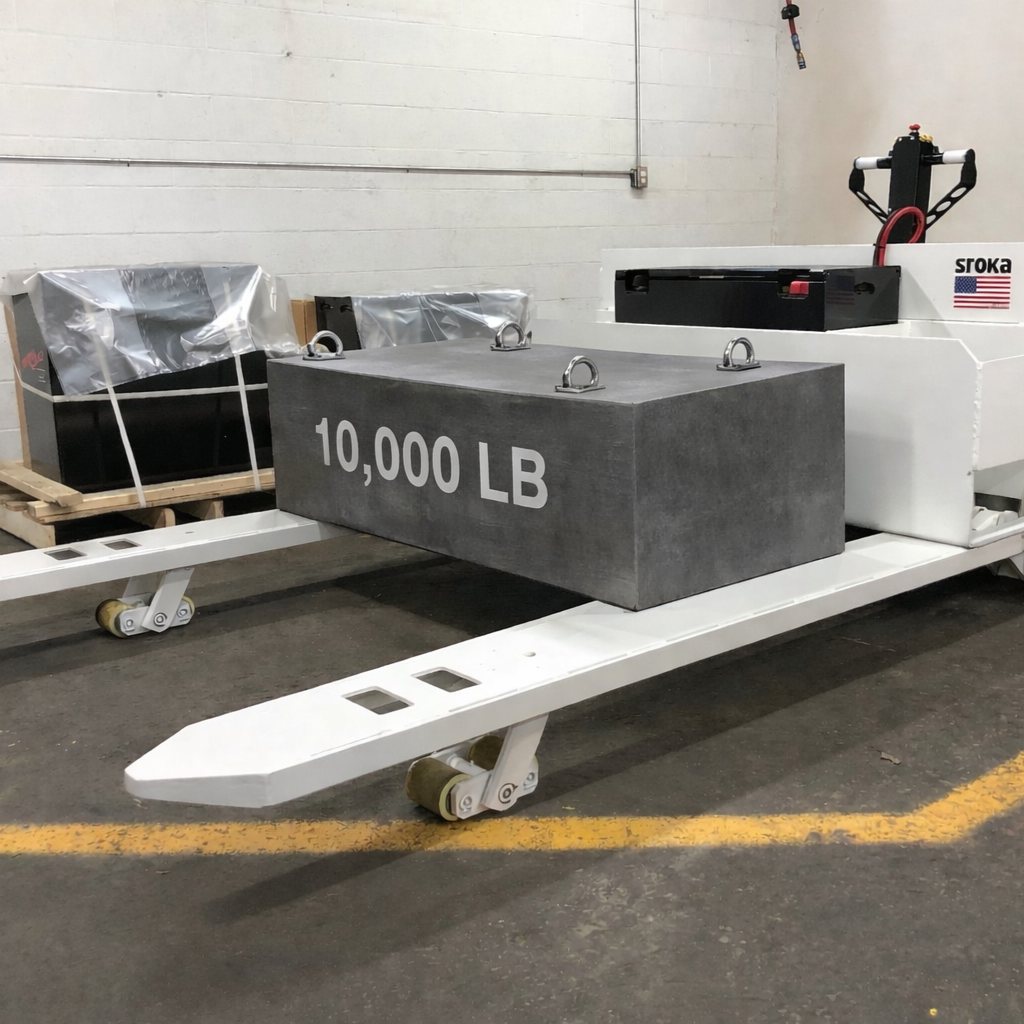

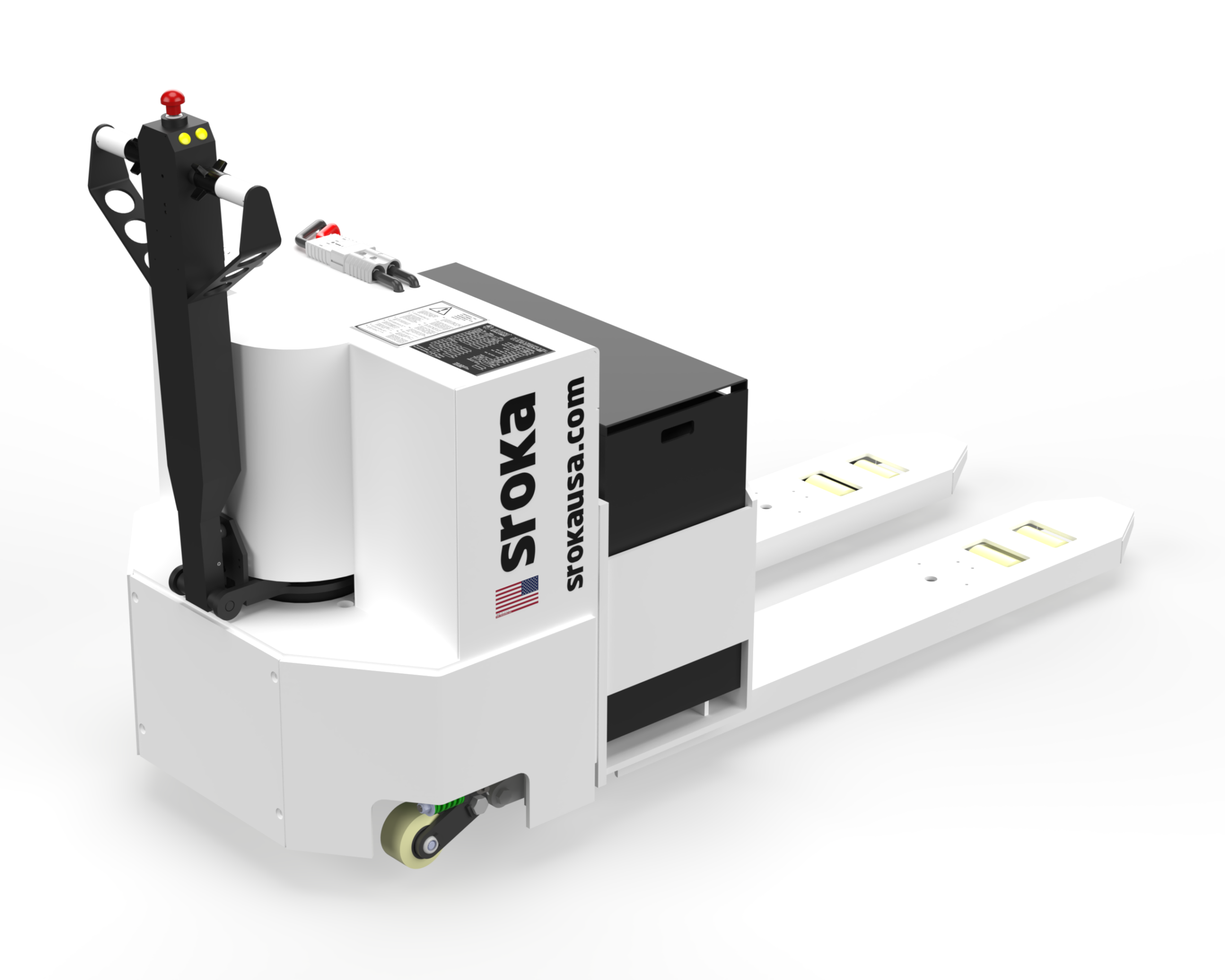

10,000 lb Electric Walkie Pallet Truck
Model LWP-100
The Sroka LWP-100 is a 10,000 lb electric walkie pallet truck engineered for operations that need more than a standard warehouse electric pallet jack. Its 24V electric system, AC drive performance, and heavy-duty industrial construction make it well suited for manufacturing plants, logistics operations, steel facilities, equipment assembly environments, and other demanding material handling applications.
The LWP-100 is engineered for rigorous industrial service and designed to meet the safety and performance expectations of modern powered industrial truck standards.
Part of the Sroka LWP Series, the LWP-100 is ideal when loads are too heavy, operating conditions are too demanding, or pallet dimensions require a more robust solution than light-duty electric pallet jacks. Custom fork dimensions and application-specific configurations are available.
- Capacity: 10,000 lbs
- Voltage: 24V
- Configuration: Single-drive
- Drive System: AC
- Power Steering: Optional
- Operator Type: Walk-behind
Why the LWP-100 Differs from a Standard Electric Pallet Jack
The LWP-100 electric walkie pallet truck is designed for facilities that need dependable pallet movement under heavier loads and tougher operating conditions. While many electric pallet jacks are built primarily for light warehouse duty, the LWP-100 is positioned for industrial pallet handling where durability, control, application fit, and long-term service life matter more.
It is a strong fit for companies moving palletized materials through production areas, transport lanes, staging zones, and other demanding environments where uptime and ruggedness are critical. The result is a walkie pallet truck that gives operators better control under load and gives buyers a more durable, application-focused alternative to commodity pallet jacks.
Looking for the full product family? Browse all walkie pallet trucks, compare the full LWP Series, or contact Sroka about a custom pallet truck configuration.
Applications for a 10,000 lb Electric Walkie Pallet Truck
The LWP-100 walkie pallet truck is designed for demanding pallet transport across manufacturing, logistics, warehouse, and heavy industrial environments. Its 10,000 lb capacity makes it well suited for operations that need more capability than a standard electric pallet jack.
- Manufacturing facilities
- Equipment assembly plants
- Steel and metal processing operations
- Warehouse pallet transport
- Distribution and logistics support
- Heavy industrial material handling
- Specialized pallet handling applications
For operations with unusual load sizes, tighter clearances, or specialized pallet requirements, the LWP-100 can also be configured to better match the application. That makes it a practical solution not only for standard pallet transport, but also for operations that need custom fork dimensions, application-specific handling geometry, or a more specialized heavy-duty walkie pallet truck.
Key Features of the LWP-100
Built for demanding environments, the LWP-100 combines heavy-duty construction with practical features that support durability, control, and long-term performance.
Built for Demanding Industrial Environments
The LWP-100 is designed for facilities that expect equipment to hold up under real industrial use. Built on an all seam-welded steel plate frame and assembled from high-quality components, the platform is engineered for rigorous service in manufacturing, logistics, and heavy industrial environments. It is also designed to meet or exceed the requirements of UL 583 and ANSI/ITSDF B56.1, supporting safe, standards-based operation.
For many buyers, the advantage is not just capacity. It is the combination of capacity, customization, industrial construction, and standards-based engineering. The result is a walk-behind pallet truck that delivers the durability and performance required for demanding industrial pallet handling.
LWP-100 Specifications
Below are the key reference specifications for the Sroka LWP-100 walkie pallet truck.
| Specification | Value |
|---|---|
| Model | LWP-100 |
| Rated Capacity | 10,000 lbs |
| Operator Type | Walk-behind |
| Drive | Electric |
| Safety Standards | Engineered to meet or exceed UL 583 / ANSI ITSDF B56.1 requirements |
| Electrical System Classification | Type E standard / Type EE optional |
| Electrical System Voltage | 24V |
| Drive Configuration | Single-Drive |
| Drive System Type | AC |
| Power Steering | Optional |
| Chassis Width | 32.5 in |
| Head Length | 33.75 in |
| Drive Tire | 12 x 4 polyurethane |
| Load Wheels | 3.25 x 6 polyurethane |
| Battery Compartment | 32 x 13.25 x 32 in (long x wide x open top) |
| Battery Capacity | 510 amp hr standard / 750 amp hr optional |
| Fork Outside Spread | 27 in |
| Lowered Fork Height | 3.25 in |
| Raised Fork Height | 8.75 in standard / 9.25 in optional |
| Typical Fork Length Options | 36 in, 42 in, 48 in, 60 in, 84 in, 96 in |
| Travel Speed | up to 3.5 mph |
| Fork / Configuration Options | Available upon request |
Configured for Your Application
Not every pallet load is standard. The LWP-100 can be configured to better match your product, pallet dimensions, load geometry, and operating environment. Sroka’s current walkie pallet truck line already emphasizes custom fork dimensions and configurations.
- Fork length options
- Fork width options
- Width over forks
- Fork profile adjustments
- Application-specific configurations
- Power steering option selection
If your operation involves unusual loads, nonstandard pallets, tighter clearances, or specialized handling requirements, contact Sroka to discuss the best LWP-100 configuration for your application.
Compare LWP Series Models
The LWP-100 is part of Sroka’s LWP Series walkie pallet trucks, which ranges from 6,000 lb to 30,000 lb capacity across single-drive and dual-drive configurations. If you are comparing capacities or trying to find the best fit for your load profile, explore nearby models below.
Need help selecting the right model? Request a quote and tell us about your load weight, pallet dimensions, aisle space, and operating environment.
Related Material Handling Equipment
If you are evaluating the LWP-100, you may also want to review related heavy-duty material handling equipment from Sroka.
Request a Quote
Need a 10,000 lb electric walkie pallet truck for your operation? The Sroka LWP-100 is built for heavy-duty pallet transport and can be configured to better match your pallets, load dimensions, and application requirements.
Contact Sroka today for pricing, specifications, lead time, and application guidance.
